Aircraft Model Relay Module PWM Navigation Light Remote Control 1CH Dual-Way Electronic On-Off Switch 10A for RC 5V Receiver

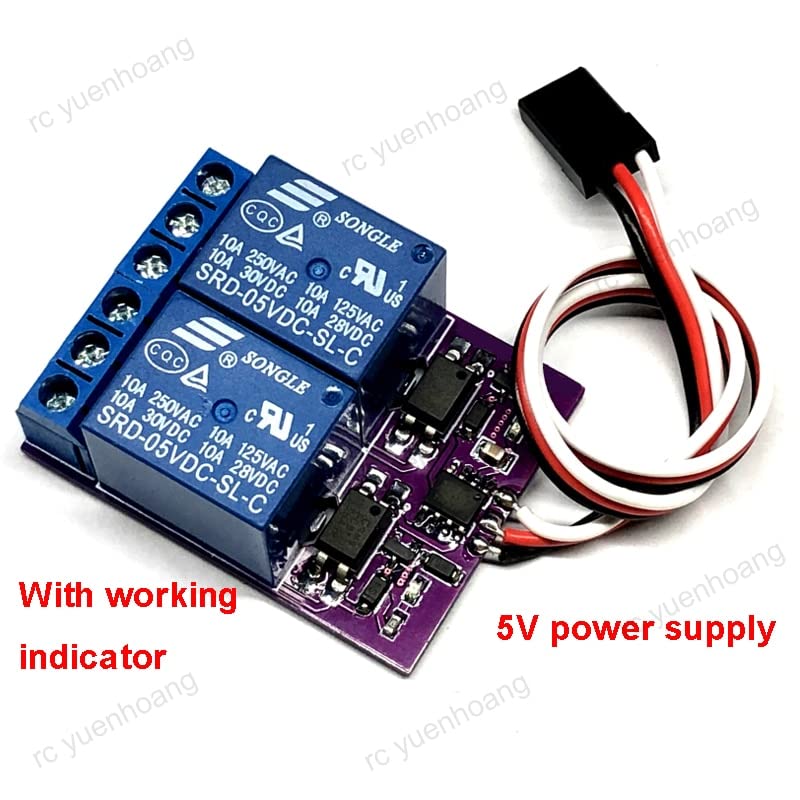

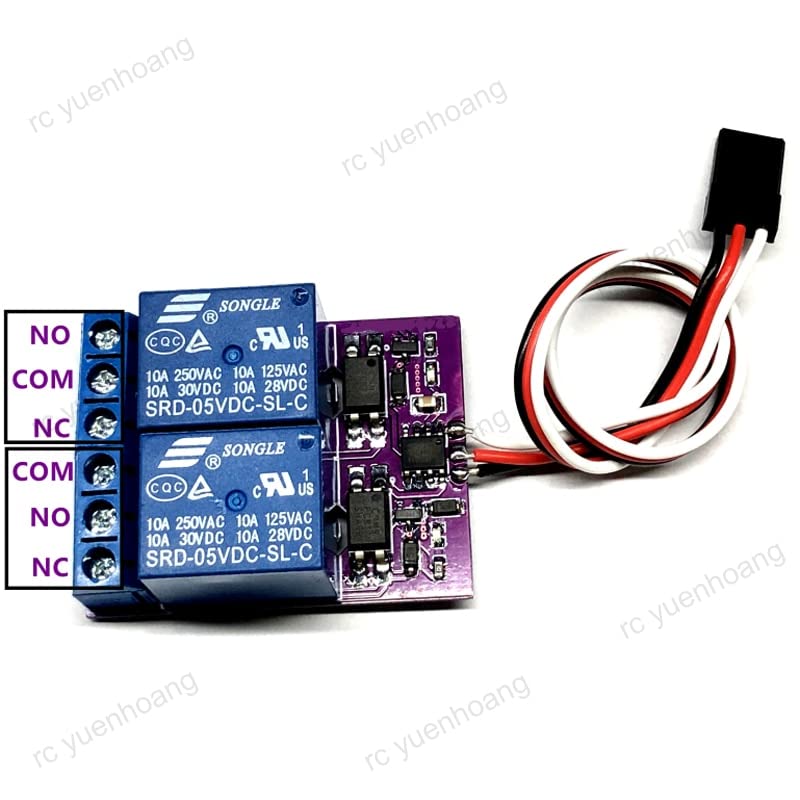

Aircraft Model Relay Module PWM Navigation Light Remote Control 1CH Dual-way Electronic On-off Switch 10A for RC 5V ReceiverFeatures:- Only 5V voltage receiver is supported, otherwise the module may be damaged.- Size: 42*32mm- Wire length: 200mm- Weight: 29g- 1 channel servo signal input, control two-way electronic switch- Maximum voltage 250V/AC, 10A current- Controlled end supports 10A 250VAC/10A/30VDC- 2CH Output (only one relay can operate at the same time)- No need to be calibrated, compatible with various brands of remote control devices- Three-stage switch and proportional channel can be controlled- With blue LED indicator functionApplication range:- Remote control model rocket launch- Remote control model smoke control- weapon system control like real machine- Model aircraft's smoke control- Control of various remote switch systemsFunctional Descriptions:-The remote switch remotely controls up to 2 electrical equipment on the aircraft model through a switch channel on the remote control-This device does not require calibration and can be accurately compatible with remote control devices of various brands.-This device uses the receiver to supply powerTypical Applications:1.ConnectInsert the signal input cable into the three-stage switch channel or joystick channel of the receiver, which corresponds to the remote control.Connect the console switch to the device.2. Trigger(Take the throttle passage as an example) Turn the throttle lever on the remote control to the full throttle, and a relay is closed (that is, the common terminal and the normally open terminal are connected, and the common terminal and the normally closed terminal are disconnected). Turn the throttle lever on the remote control to the half throttle, and the two relays are not closed (that is, the common t

• - Only 5V voltage receiver is supported, otherwise the module may be damaged.

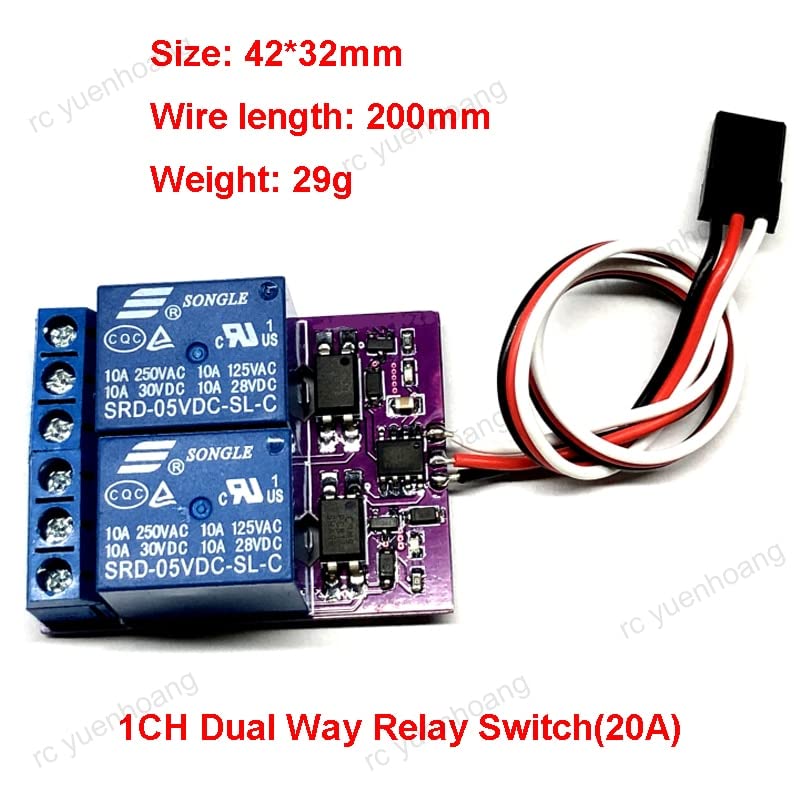

• - Size: 42*32mm
• - Wire length: 200mm
• - Weight: 29g
• - 1 channel servo signal input, control two-way electronic switch
