NEW 3.7HP COMPRESSOR DUTY ELECTRIC MOTOR, 56 FRAME, 3450 RPM, 5/8" SHAFT DIAMETER, NEMA RATED MOTOR, REPLACES 5HP SPL MOTORS RATED 15-17AMPS

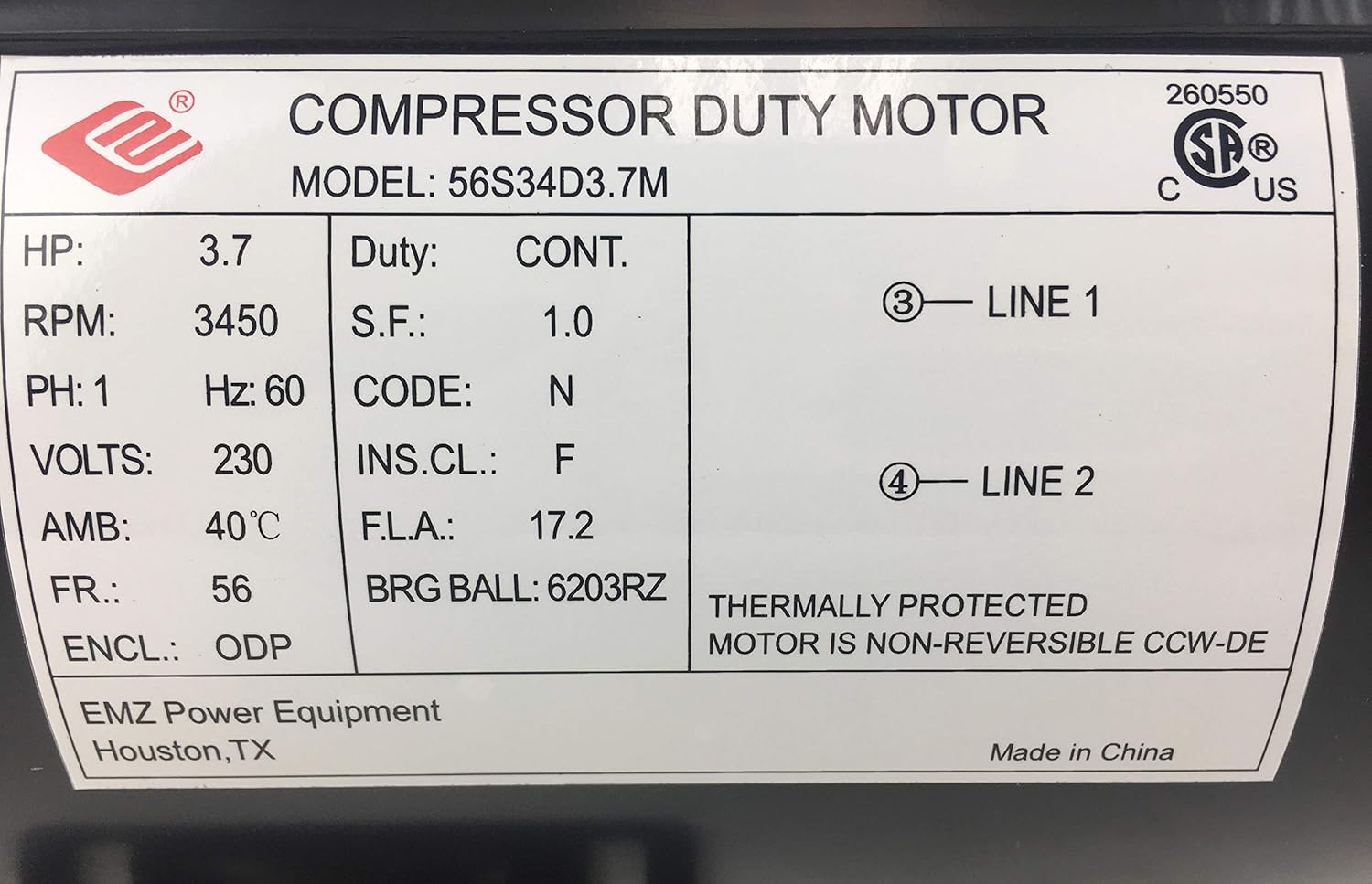

3.7 HP - 1 PHASE - 56 FRAME - 3450 RPM - 230VAC - 5/8" SHAFT ELECTRIC MOTOR FOR BELT DRIVEN AIR COMPRESSORS CONTINUOUS RUB COMPRESSOR DUTY MOTOR. ODP (OPEN DRIP PROOF FOR DRY INDOOR ENVIRONMENTS) Technical Note:: Please make sure you correctly match the FL amp rating on the motor you're replacing. This is a 3.7HP 56frame 17.2 FLA @ 230V. Please double check the motor you're replacing matches the amperage and frame size of this motor. THIS MOTOR WILL REPLACE 5HP SPL MOTORS WITH A FLA (FULL LOAD AMP) RATING OF 15 THRU 17 AMPS AT 230V. Technical Info: Horsepower: 3.7HP (Actual HP) Amperage: 17.2 FLA AT 230V Phase: One / Single Phase Voltage: 230VAC (NOT SUITED FOR 208V INCOMING) RPM: 3450 Frame: 56 Shaft Diameter: 5/8" Keyed shaft Shaft Length: 2 1/16" Rotation: CCW WHEN VIEWED FROM SHAFT END Frequency: 60hz Service Factor: 1.0 Enclosure: ODP / Open Drip Proof Overload: Yes / Manual reset button Weight: 46 lbs Warranty: 1 Year WIRING SCHEMATIC FOR 230V SHOWN ON ATTACHED PIC OF MOTOR NAMEPLATE. MODEL: 56S34D3.7M

• NEW 3.7HP COMPRESSOR DUTY MOTOR, SINGLE PHASE, 56 FRAME, 3450RPM, 5/8" SHAFT DIAMETER
• IF THE MOTOR YOU ARE REPLACING SHOWS HP AS (5HP SPL) OR JUST (SPL) AND IS ALSO RATED BETWEEN 15-17 FULL LOAD AMPS AT 230V, THIS MOTOR WILL REPLACE YOURS
• CCW (COUNTER CLOCKWISE) SHAFT ROTATION WHEN VIEWED FROM THE SHAFT END. SHAFT ROTATION IN NOT REVERSIBLE
• 2.25" SHAFT LENGTH, KEYED SHAFT, 60HZ, 1.0 SERVICE FACTOR
• WIRING INFO SHOWN ON NAMEPLATE, PROFESSIONAL INSTALLATION REQUIRED. MODEL:56S34D3.7M EMZ BRAND AND EMZ INDUSTRIES INC
