WM210V Metal Lathe 8''x39" Precision Benchtop Mini Lathe Inch Thread with 1100W Brushless Motor 50-2500rpm Variable Speed for Metal Wood Work 110V

Product ParametersModel: WM210V Voltage: AC110V 50/60Hz(Brushless Motor) Power: 1100W(1.5HP) Length of center: 39.37"(1000mm) Swing Over Bed: 8.27"(210mm) Concentricity tolerance: 0.03mm-0.05mm Rotary diameter of tool rest: 5.51"(140mm) Spindle bore: 1.26"(32mm) Max clamping diameter of chuck: 4.92"(125mm) Width of lathe bed: 3.94"(100mm) Thread standard: Inch screw thread Number of Spindle Speeds: Infinitely variable speeds Range of Inch Threads: 10-44T.P.I Range of metric threads: 0.3mm-3mm Spindle taper: MT5 Knife rest labour: Horizontal four-station Spindle rotation speed: 50-2500rpm Precision of the spindle: 0.01mm Automatic feed range: 0.1mm-0.2mm Tail frame taper: MT2 Maximum stroke of tool rest plate: 2.16"(55mm) Maximum stroke of middle plate: 2.95"(75mm) Maximum stroke of bottom plate: 26.77"(680mm) Maximum stroke of tailstock sleeve: 2.36"(60mm) Package size: 57.9"*18.5"*20.1"(147cm*47cm*51cm) Net weight/Gross weight: 178.6LB(81kg)/238.1LB(108kg)Item Included:WM210V lathe *1Base oil pan *1English manual *1 Oil can *1Hexagon wrench *5Fork wrench *2 The screwdriver *2Chuck jaw *3Chuck spanner *1 Metal gear *12(24/30/40/48/50/52/60/60/66/70/72/75)Fuse *1

• Good Quality Material: The metal lathe uses good quality cast iron bed, which has undergone high frequency quenching process and precision grinding. There is equipped with a 1100W brushless motor with strong power, low noise and low energy consumption
• High Precision: The saddle handle, tailstock handle and the movable center are designed with precise dials, which makes the work more accurate and professional. The lathe adopts lead screw drive structure, with the features of good impact resistance, high precision and convenient maintenance and replacement, ensuring machining accuracy and efficiency

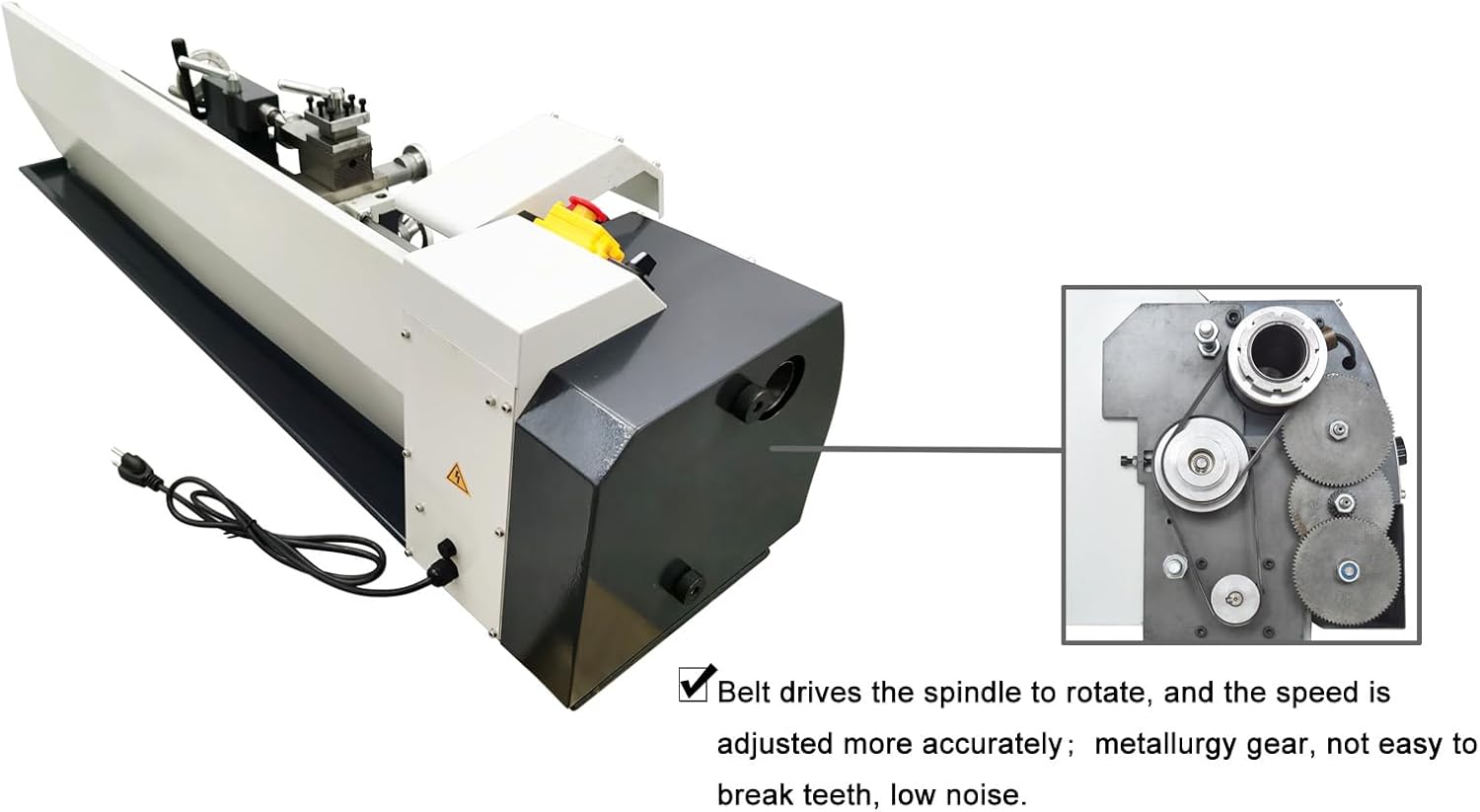

• Adjustable Spindle Speed: The spindle rotation speed is divided into two gears: 50-1250rpm/m and 1250 -2500rpm/m, which can be adjusted continuously. The speed can be observed in real time through the control panel
• Humanized Design: There is an adjustable 4-way tool post on the lathe, which is easy and convenient to change the cutting tool. The forward and reverse switch and emergency stop switch design above lathe can cut off the power supply immediately in an emergency, improving the operation reliability
• Wide Application: The mini metal lathe can be used for turning end face, internal and external thread, as well as drilling, chamfering, cutting and other processing, can meet most of your DIY processing needs. The center distance of the lathe is 39.4", which is easy to process long pieces
